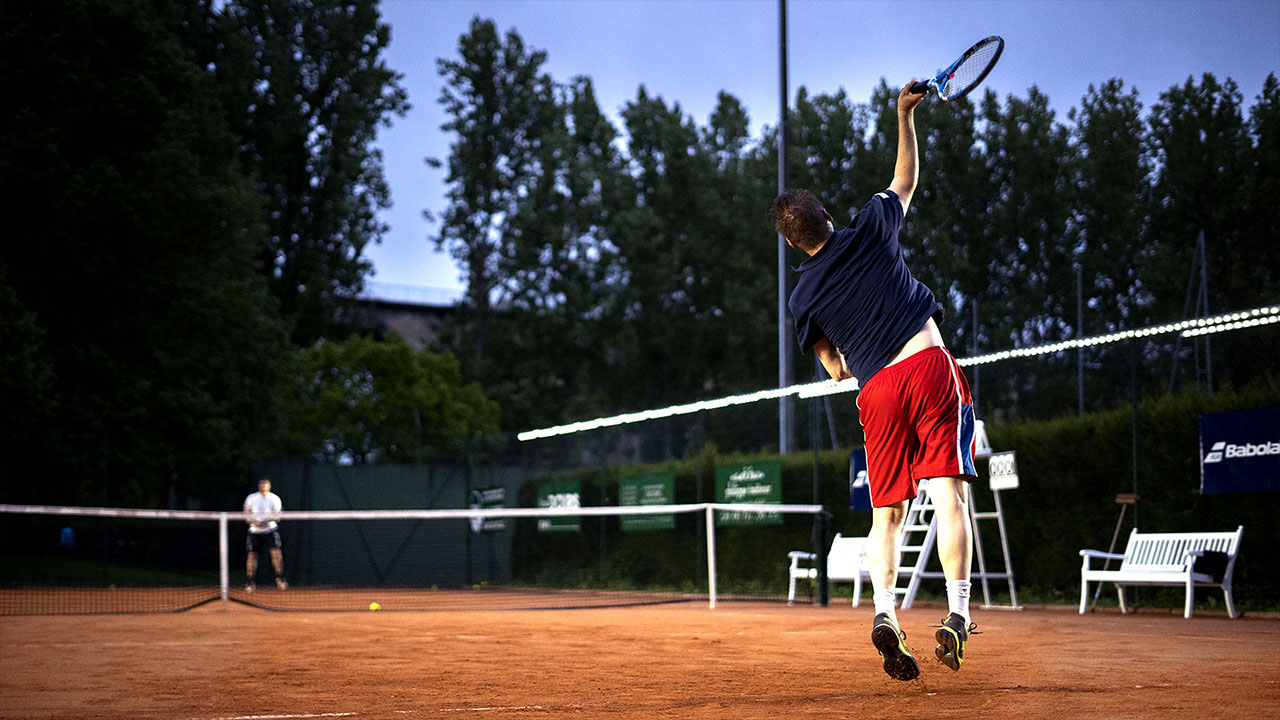

TWEENER® has revolutionised lighting solutions for tennis courts

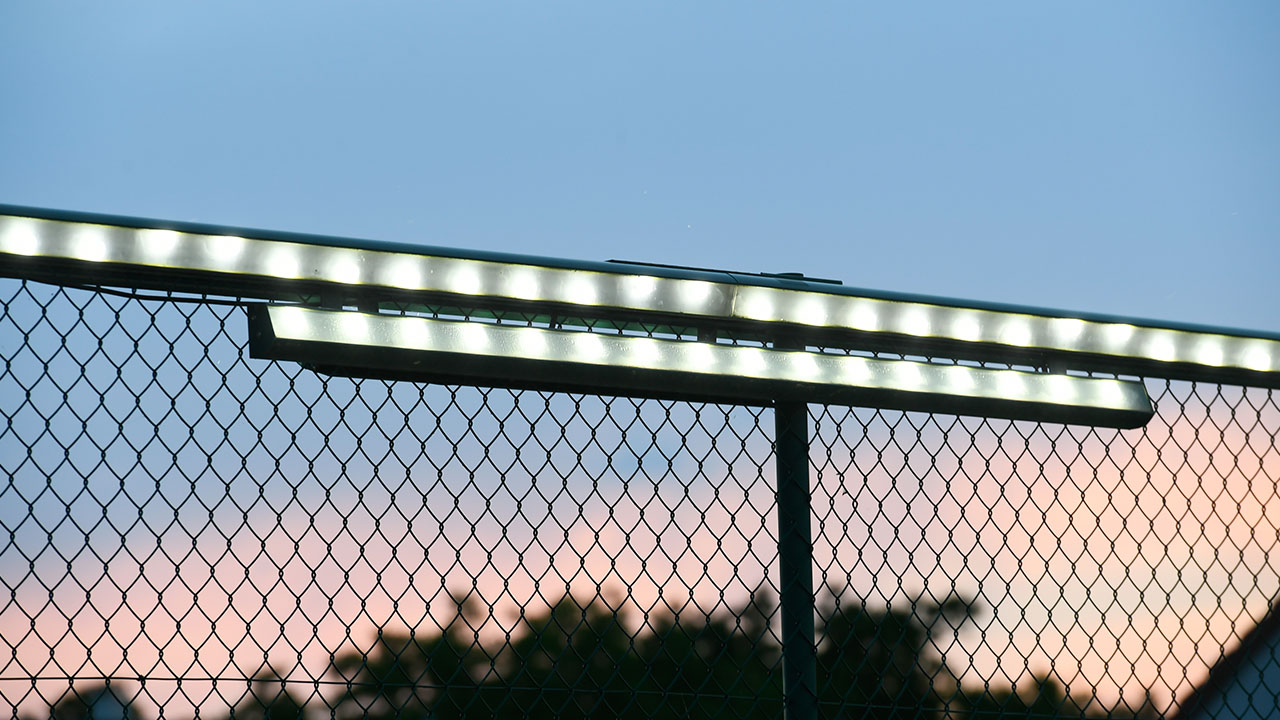

thanks to its linear LED strips system which is directly fixed on the poles of the enclosures on each side of the court.

TWEENER® has unique advantages when it comes to all the criteria of choice, making it the product with the best quality / price / attractiveness / reliability / ease of installation ratio in the market:

  • Optimised lighting quality thanks to its proprietary LED technology
  • The most appealing price on the market in all regards: purchase, installation, operation
  • Attractive design: simplicity of the lines, quality of materials
  • Simple and quick installation: no building permit, installed in 1 day)
  • Modular system suited to the specificities of each court (dimensions, environment, etc.)
  • Perfect integration in the environment: little or no visual disturbance
  • A controlled carbon footprint: no works, concrete, or pylons
  • Only 2200 W to light 1 court, which is equal to the power consumption of one vacuum cleaner (< €0.4 per hour)
  • Certified product, eligible for federal bonuses
  • Long-term lighting: 50,000 hours minimum (equivalent to 4 hours per day for 35 years)

With the advantage of its innovations, TWEENER® has solidified its position as the major leader for several private or public clubs, tennis academies and other major operators (hotels, resorts, etc) or private owners.

Two configurations of the TWEENER® system are offered depending on the number of courts to be lit:


Single TWEENER®
(1 court)
2 models – EC standard and US standard


Double TWEENER®
(2 courts simultaneously)
2 models – EC standard and US standard

Each configuration includes: 2 x 8 LED strips fixed on 3-metre high poles + 2 “High balls” LED strips aligned on the service line. The total power depends on the single or double configuration.

Your TWEENER®  pack includes, in addition to different LED strips, all the fixing accessories (support plate, connection plate, mounting flanges and miscellaneous necessary screws and bolts), electrical extensions and a power supply unit fixed on a side at the end of the LED modules line.

A qualification sheet of the courts to be lit must be provided before the order to optimise the technical configurations of the Tweener systems in view of possible constraints of the courts.

Lighting:
  • 300 lux – IRC Index (colour output) > 70 – 130 lm/W – LED power 1800 W – Electric power 2200 W
  • Coefficient of uniformity ≥ 0.7
  • Colour temperature: 5000 K
  • Average luminous flux: 185 200 lm
LED strips:
  • Thermo-lacquered aluminium profile with lighting apparatus made of ultra-resistant and anti-UV treated polycarbonate
  • Long LED strips: 380 x 5.9 x 7.9 cm – 6.3 kg
  • Short LED strips (high balls): 95 x 5.9 x 7.9 cm – 2 kg
  • Protection index: IP 65
  • Impact resistance index: IK 08
  • Operating temperature: -30°C to +35°C
  • LED lens: patented technology owned by TWEENER®
  • Quantity: 544 LEDs (272 per side of the court)
Installation system:
  • Lacquered stainless steel
  • Designed for round, square, L or T-shaped poles
  • Customised mounting flange for non-standard poles – additional custom service.
Power supply:
  • 2 integrated power supply units of 1200 W (IP67) – 64 x 30 x 8.8 cm – 10 kg per unit
  • Supply voltage: 180-528 V AC
Colours:
  • Standard colours: Green (RAL 6005) or black (RAL 9005). Other colours optional.

Certifications and standards:
  • Quality and security validated by globally recognised certification brands: European certification with the CE&RoHS standard / US certification with the C-UL-US standard.
  • Compliant with the federal standards including the French Tennis Federation
  • Patented technology in France (FR-3071586-B1) and USA (US-11118744-B2)

SINGLE TWEENER TECHNICAL SHEET

Lighting:
  • 250 lux – IRC Index (colour output) > 70 – 135 lm/W – LED power 3500 W – Electric power 4500 W
  • Coefficient of uniformity ≥ 0.7
  • Colour temperature: 5000 K
  • Average luminous flux: 370 400 lm
LED strips:
  • Thermo-lacquered aluminium profile with lighting apparatus made of ultra-resistant and anti-UV treated polycarbonate
  • Long LED strips: 380 x 5.9 x 7.9 cm – 6.3 kg
  • Short LED strips (high balls): 95 x 5.9 x 7.9 cm – 2 kg
  • Protection index: IP 65
  • Impact resistance index: IK 08
  • Operating temperature: -30°C to +35°C
  • LED lens: patented technology owned by TWEENER®
  • Quantity: 1088 LEDs (544 per side of the court)
Installation system:
  • Lacquered stainless steel
  • Designed for round, square, L or T-shaped poles
  • Customised mounting flange for non-standard poles – additional custom service.
Power supply:
  • 2 integrated power supply units of 2×1200 W (IP67) – 63 x 53 x 8.7 cm – 19 kg per unit
  • Supply voltage: 180-528 V AC
Colours :
  • Standard colours: Green (RAL 6005) or black (RAL 9005). Other colours optional.

Certifications and standards:
  • Quality and security validated by globally recognised certification brands: European certification with the CE&RoHS standard / US certification with the C-UL-US standard.
  • Compliant with the federal standards including the French Tennis Federation
  • Patented technology in France (FR-3071586-B1) and USA (US-11118744-B2)

DOUBLE TWEENER TECHNICAL SHEET

Options available “à la carte”

(refer to the dedicated section here) :

  • Customised colour excluding green (RAL 6005) or black (RAL 9005).
  • Wireless operation using a smartphone or tablet
  • Light extension for longer courts
  • Brightness gradation management system
  • Extended warranty (10 years)

The TWEENER® system is designed for installation on standard tennis courts  (AFNOR NF P90-110 standard: tennis court with width between 16 and 20 m, surrounded by a mesh enclosure taller than 2.60 m, in good condition with aligned and sealed poles separated by 4 metres or less). It may be adapted to special configurations (partial enclosures, absence of poles, low or non-standard poles, specific court dimensions, etc.). Different technical solutions may be proposed to you by our teams or installers. These solutions are part of a customised design process called TWEENER® Custom.

The TWEENER® pack is delivered in a wooden crate on a pallet base of 400 x 73 x 50 cm.

Pack weight:

(subject to adjustment depending on the requirements)

  • 226 kg for a Single TWEENER®
  • 246 kg for a Double TWEENER®

The product is transported via a truck with a removable side cover. The bulky packaging of our crate does not allow the use of a tailgate truck. It is up to you to provide the human and/or material resources necessary for unloading the equipment.

An illustrated installation guide shall be handed to you when delivering your TWEENER® system.

The installation is extremely simple and does not require any special tools. Only 7 hours are sufficient with a team of 2 or 3 persons to install a complete TWEENER® lighting system on a single or double court.

The installation is a special service that is not included in the purchase price. It may be carried out by one of our authorised TWEENER® installers (list of installers here) or by the competent technical service of your choice. You can also avail of technical installation assistance upon request.

The connection to the electrical network must mandatorily be executed by a qualified electrician.

In case of a clear problem with the installation resulting in a malfunction of our TWEENER® system, the 5-year parts and labour warranty of our products may be affected.

The TWEENER® system is designed for standard enclosures which are in sufficiently good state of repair to support all the equipment. A possible adaptation or refurbishment of these enclosures is not included in the purchase price.
